鳳誠影音全新推出$69900超值劇院組合
KEF T105 組合榮獲 2013年度 英國 WHAT
HIFI 多聲道喇叭五顆星推薦
YAMAHA RX-V475 HDMI-4入1出藍光3D4K/AIR-PLAY擴大器搭配
KEF T105 最新專利超薄3.5CM
5.1CH 多聲道劇院喇叭組
特價組合$69,900
(含特別搭配高級好聲線材及基本專業施工)
|
主/中/環繞聲道
T101 / T101c |
|
Design |
Two-way closed box |
|
Drive units |
115mm (4.5in.) dual layer MF
25mm (1in.) aluminium HF |
|
Frequency response |
80Hz - 30kHz |
|
Crossover frequency |
1.7kHz |
|
Amplifier requirements |
10 - 100 W |
|
Sensitivity (2.83V/1m) |
90dB (wall mount)
87dB (floor stand mount) |
|
Maximum output (SPL) |
107dB |
|
Impedance |
8Ω |
|
Internal volume |
0.7 Litres |
|
Weight |
1kg (2.2lbs) |
Dimensions
(H x W x D) |
330* x 140 x 35 mm
(13.0 x 5.5 x 1.4 in.) |
Dimensions
(H x W x D)
centre mode |
140 x 330 x 35 mm
(5.5 x 13.0 x 1.4 in.) |
|
Finish |
Black |
| |
|
超低音喇叭 |
T-2 |
|
Design |
Closed box powered subwoofer |
|
Drive units |
1 x 250mm (10in.) |
|
Frequency response |
30Hz - 250Hz |
|
Amplifier |
250 Watts built-in Class-D |
|
Maximum output (SPL) |
110dB |
|
Low pass filter variable |
Fixed 250Hz, 2nd-order |
|
Low level signal inputs |
RCA phono socket |
|
Internal volume |
12.7 Litres |
|
Power requirements |
100 - 240 V ac ~ 50/60Hz |
|
Power consumption |
250VA |
|
Weight |
13kg (28.6lbs) |
Dimensions
(H x W x D) |
380 x 370 x 177 mm
(15.0 x 14.6 x 7.0 in.) |
|
Finish |
Black |
可依裝潢需求，加價購買專用落地腳架。一對建議售價$16000，本公司特價$CALL。
|
|
YAMAHA RX-V475 HDMI-1.4版4入1出3D4K對應藍光擴大器
建議售價$19900
|
Amplifier Section |
Channel |
5.1 |
|
Rated Output Power
(1kHz, 1ch driven) |
115W
(8ohms, 0.9% THD) |
|
Rated Output Power
(20Hz-20kHz, 2ch driven) |
80W
(8ohms, 0.09% THD) |
|
Dynamic Power per
Channel (8/6/4/2 ohms) |
110/130/160/-W |
|
Surround Sound Processing |
CINEMA DSP |
Yes (3D) |
|
DSP
Programs |
17 |
|
Compressed Music
Enhancer |
Yes |
|
Virtual Presence Speaker |
Yes |
|
SILENT CINEMA / Virtual
CINEMA DSP |
Yes |
|
Dolby TrueHD |
Yes |
|
Dolby Digital Plus |
Yes |
|
DTS-HD Master Audio |
Yes |
|
Audio Features |
YPAO
sound optimization |
Yes |
|
Adaptive DRC (Dynamic
Range Control) |
Yes |
|
Initial Volume & Maximum
Volume Setting |
Yes |
|
Audio Delay |
Yes
(0-250 ms) |
|
192kHz/24-bit DACs for
all channels |
Yes
(Burr-Brown) |
|
Video Features |
HDMI
3D passthrough |
Yes |
|
HDMI Audio Return
Channel |
Yes |
Deep Color/x.v.Color/
24Hz Refresh Rate /Auto Lip-Sync |
Yes |
|
4K Pass-through |
Yes |
|
Extensive Connection |
HDMI Input/Output |
4 / 1 |
|
HDMI CEC |
Yes
(SCENE, Device Control) |
|
USB Input |
iPod/iPhone/iPad,
USB Memory,
Portable Audio Player |
|
Network Port |
With
access to vTuner
Internet Radio service and
DLNA 1.5 Compatible. |
|
Front AV Input |
USB/Mini
Jack/Composite |
|
Digital Audio
Input/Output: Optical |
2 / 0 |
|
Digital Audio
Input/Output: Coaxial |
2 / 0 |
|
Analog Audio
Input/Output |
4 (front
1) / 1 |
|
Component Video
Input/Output |
2 / 1 |
|
Composite Video
Input/Output |
5 (front
1) / 1 |
|
Preout |
Subwoofer |
|
Headphone Output |
1 |
|
Connectivity |
AirPlay |
Yes |
|
User Interface |
App Control |
Yes
(iPhone/iPad/Android
phone/tablet) |
|
On-screen display |
Yes
(Color OSD) |
|
SCENE |
SCENE (4
sets) |
|
Remote Control Unit |
Yes
(Preset) |
|
Tuner Section |
FM/AM Tuner |
Yes |
|
General |
ECO mode |
Yes |
|
Standby Power
Consumption (IR only) |
≤0.1W |
|
Auto Power Down |
Yes |
|
Dimensions (W x H x D) |
435 *
161 *315 |
|
Weight |
17.9
lbs. |
|

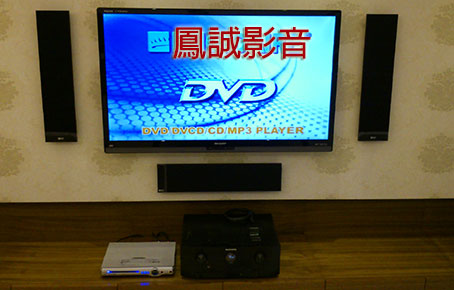

客戶安裝實例
 |
