鳳誠影音全新推出$76800超值劇院組合
YAMAHA RX-V475 HDMI-5入1出藍光3D4K/AIR-PLAY擴大器搭配
英國 KEF Q300(主喇叭)
L6LCR(中置) BOSE 131(環繞) 搭配
美國超低音之王 VELODYNE
IMPACT10 組合成5.1CH 多聲道超值劇院組
加上英國 WHARFEDALE DX1
超值黑/白鋼烤八吋木箱超低音喇叭
特價組合$49,900
(含特別搭配好聲線材及基本專業施工)
KEF Q300 主喇叭
建議售價 NT$29800
|
Model |
Q300 |
|
Design |
Two-way bass reflex |
|
Drive Units |
165mm (6.5in.) Uni-Q同軸同點 單體組合技術
25mm (1in.) 鋁製半球型高音 |
|
Crossover Frequencies |
2.5kHz |
|
Sensitivity (2.83V/1m) |
87dB |
|
Maximum Output |
110dB |
|
Input Impedance |
8 Ohms |
|
Amplifier Requirements |
15 - 120W |
|
Plinth Dimensions (WxD) |
273 x 372 mm (10.75 x 14.65 in.) |
|
Frequency Range |
42Hz - 40kHz |
|
Weight |
7.7kg (17.0lb) |
|
Dimensions (H x W x D) |
355 x 210 x 302 mm (14.0 x 8.3 x 11.9 in.) |
|
Finishes |
Classic Black White Ash, Walnut Ash |
|
KEF
C6LCR
中置喇叭
建議售價
NT$12000
|
Model |
C6LCR ( 目前台灣庫存限定出貨為胡桃木色 ) |
|
Design |
Two-way acoustic suspension |
|
Drive Units |
19mm (0.75in.) aluminuim HF, 2 x 130mm (5.25in.)
LF |
|
Crossover Frequencies |
2.5kHz |
|
Sensitivity (2.83V/1m) |
90dB |
|
Maximum Output |
111dB |
|
Input Impedance |
8 Ohms |
|
Amplifier Requirements |
10 - 150W |
|
Magnetic Shielding |
Yes |
|
Frequency Range |
65Hz - 40kHz |
|
Weight |
6.2kg (13.7lb) |
|
Dimensions (H x W x D) |
177 x 430 x 211 mm (7 x 16.9 x 8.7 in.) |
|
Finishes |
Classic Black Ash, European Walnut |
|
超低音 VELODYNE IMPACT10 超低音
建議售價 NT$28000(支)
|
Design |
Powered bass reflex |
|
Drive Units |
1 x 250mm (8in.) LF |
|
Frequency Response (+/-3dB) |
32Hz - 140Hz |
|
Maximum Output |
108dB |
|
Magnetic Shielding |
Yes |
|
Amplifier |
250W built-in Class-AB |
|
Dimensions (H x W x D) |
345 x 320 x 380 mm (13.6 x 12.6 x 15.0 in.) |
|
Finishes |
Classic Black Ash |
|
後環繞 BOSE 161 掛壁式喇叭
建議售價 NT$12000(對)
|
|

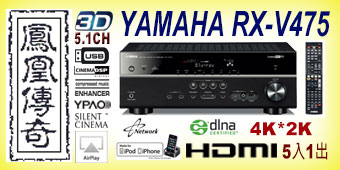

YAMAHA RX-V475 HDMI-1.4版5入1出3D4K對應藍光擴大器
建議售價$19900 尺寸: 435 *
161 *315 MM
|
Amplifier Section |
Channel |
5.1 |
|
Rated Output Power
(1kHz, 1ch driven) |
115W
(8ohms, 0.9% THD) |
|
Rated Output Power
(20Hz-20kHz, 2ch driven) |
80W
(8ohms, 0.09% THD) |
|
Dynamic Power per
Channel (8/6/4/2 ohms) |
110/130/160/-W |
|
Surround Sound Processing |
CINEMA DSP |
Yes (3D) |
|
DSP
Programs |
17 |
|
Compressed Music
Enhancer |
Yes |
|
Virtual Presence Speaker |
Yes |
|
SILENT CINEMA / Virtual
CINEMA DSP |
Yes |
|
Dolby TrueHD |
Yes |
|
Dolby Digital Plus |
Yes |
|
DTS-HD Master Audio |
Yes |
|
Audio Features |
YPAO
sound optimization |
Yes |
|
Adaptive DRC (Dynamic
Range Control) |
Yes |
|
Initial Volume & Maximum
Volume Setting |
Yes |
|
Audio Delay |
Yes
(0-250 ms) |
|
192kHz/24-bit DACs for
all channels |
Yes
(Burr-Brown) |
|
Video Features |
HDMI
3D passthrough |
Yes |
|
HDMI Audio Return
Channel |
Yes |
Deep Color/x.v.Color/
24Hz Refresh Rate /Auto Lip-Sync |
Yes |
|
4K Pass-through |
Yes |
|
Extensive Connection |
HDMI Input/Output |
5 / 1 |
|
HDMI CEC |
Yes
(SCENE, Device Control) |
|
USB Input |
iPod/iPhone/iPad,
USB Memory,
Portable Audio Player |
|
Network Port |
With
access to vTuner
Internet Radio service and
DLNA 1.5 Compatible. |
|
Front AV Input |
USB/Mini
Jack/Composite |
|
Digital Audio
Input/Output: Optical |
2 / 0 |
|
Digital Audio
Input/Output: Coaxial |
2 / 0 |
|
Analog Audio
Input/Output |
5 (front
1) / 1 |
|
Component Video
Input/Output |
2 / 1 |
|
Composite Video
Input/Output |
5 (front
1) / 1 |
|
Preout |
Subwoofer |
|
Headphone Output |
1 |
|
Connectivity |
AirPlay |
Yes |
|
User Interface |
App Control |
Yes
(iPhone/iPad/Android
phone/tablet) |
|
On-screen display |
Yes
(Color OSD) |
|
SCENE |
SCENE (4
sets) |
|
Remote Control Unit |
Yes
(Preset) |
|
Tuner Section |
FM/AM Tuner |
Yes |
|
General |
ECO mode |
Yes |
|
Standby Power
Consumption (IR only) |
≤0.1W |
|
Auto Power Down |
Yes |
|
Dimensions (W x H x D) |
435 *
161 *315 |
|
Weight |
17.9
lbs. |
|
|
